Paper Roll Conveyor Machine
ブランド :NEWKUANI
製品の産地 :CHINA
納入時間 :1MONTH
供給能力 :100sets/month
In view of the corrugated cardboard production line for changing frequent, manual operation complex and other factors, Newkuani successfully launched intelligent, economic and high efficient raw paper transportation system.
Video watch of paper mill base paper transportation system：
Paper Roll Chain Conveyor with lifting up device：
1) Main parameter
l Structure: by more than a v-shaped plate chain, chain drive gear and rack , paper roll lifting up device and hydraulic part; The Angle of v-shaped plate chain is 170 degrees and the width is 250mm, the surface electrostatic RAL5008.
l Chain speed: Max24 m/min, the inverter speed regulation, can run forward and backward
l chain materials: Stainless steel, 6mm, quenched and tempered after quenching treatment,
l Lifting up device: Milling plane fixed, slider guide, the surface electrostatic RAL1023.
l Hydraulic part: pressure:10Mpa.
l Power: 2.2kw, motor brand:BONENG;. Capacity: Max3.5T, paper roll width:600mm-2850mm;
l Lifting height: 200mm, lifting capacity: max2.4T, diameter of paper roll: φ250-750mm，width of paper roll:1200-2800mm.
l Function:The chain conveyor transport the paper roll automatically to the center position of reel stand and operator will load the paper roll without adjust the position of paper roll manually.

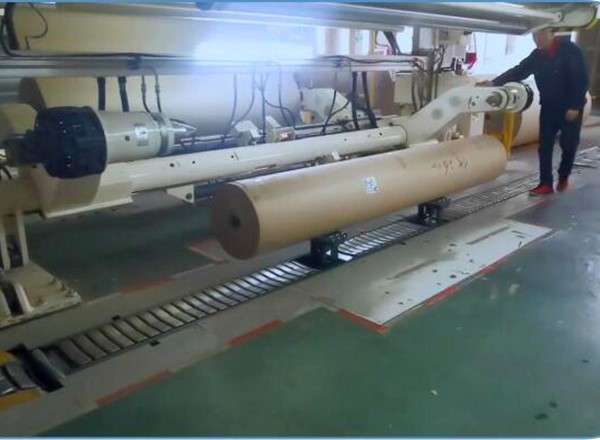

2) Outline picture
