Corrugator Auto Paper Roll Infeed System
ブランド :Newkuani
製品の産地 :Jiangsu,China
納入時間 :20days
供給能力 :100sets/month

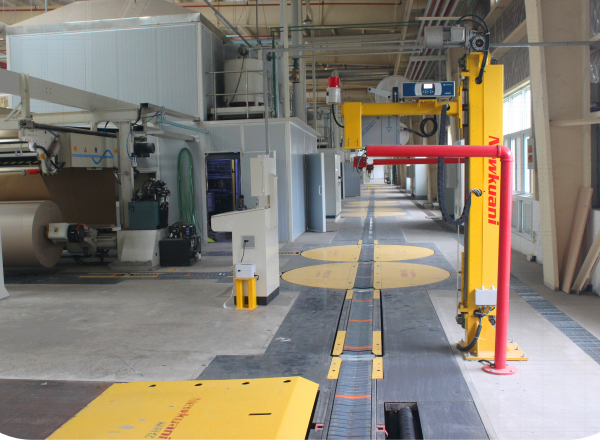

The use of the paper roll transportation turntable greatly increases the flexibility, intelligence and efficiency of the paper roll conveyor system.The rotating mechanism is made up of giant slewing bearing and reducer, and the speed of rotation is min 5s per 90°.The Paper roll chain conveyors can turn forward and backward,which facilitates the flexible transfer of the entire conveyor system and improves work efficiency.
Video display of automatic base paper logistics system：
Automatic labeling machine：
1) Main parameter
l structure: by the original DOMINO automatic labeling machine, mechanical arm bracket;
l air requirement: 6 kg pressure;
l labels for thermal stickers, size 100 mm * 60 mm;
l automatic labeling in 15 seconds to complete an action (transportation, labeling, playing paper);
2) Function：Paper roll by cardboard back chain machine back to the warehouse before arrived at weighing plate chain, the automatic control system and paper root back MES management software, through the paper MES management software to read the paper as well as the weight, then the paper roll, weight and other information sent to the automatic labeling system, the label paper roll round surface, achieve no humanization, also facilitate paper roll warehouse data management; This labeling system, in the case of no original paper MES management software, customers provide computers and printers, print the current weight of the original paper, and paste the label on the original paper
3) Outline picture
